X-Sign User Manual
In this section, we'll explain how to manage content in X-Sign, control the player, and set up playlists.
X-sign 2.0 / X-sign User manual / Manager
Creating an API table in X-Sign Manager
2020 / 08 / 24

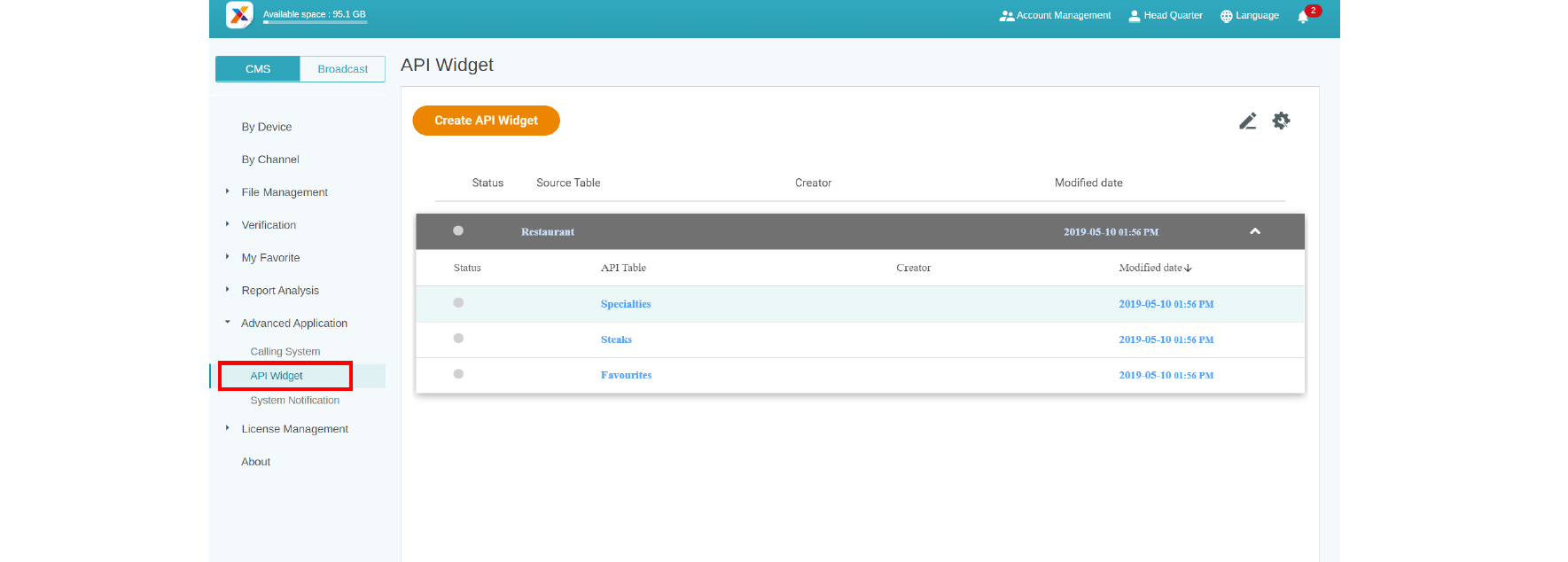

1. To create an API table, select Advanced Application > API Widget.

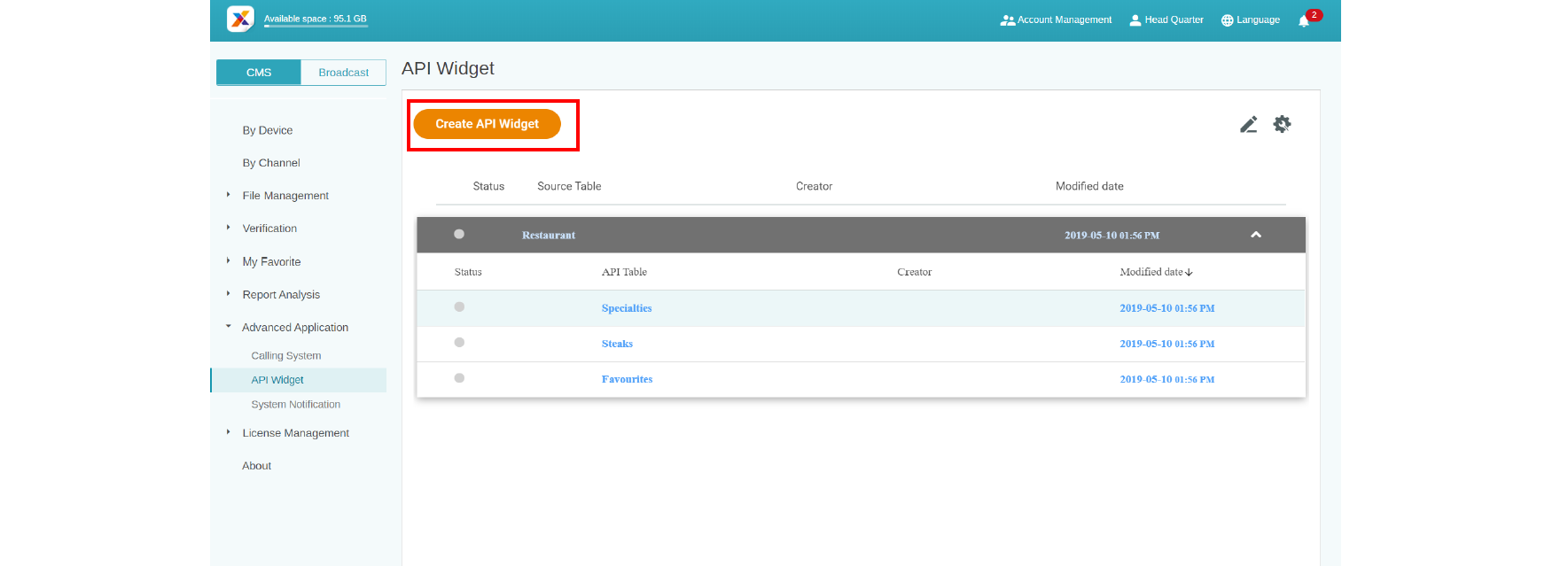

2. Create the API Widget configuration.

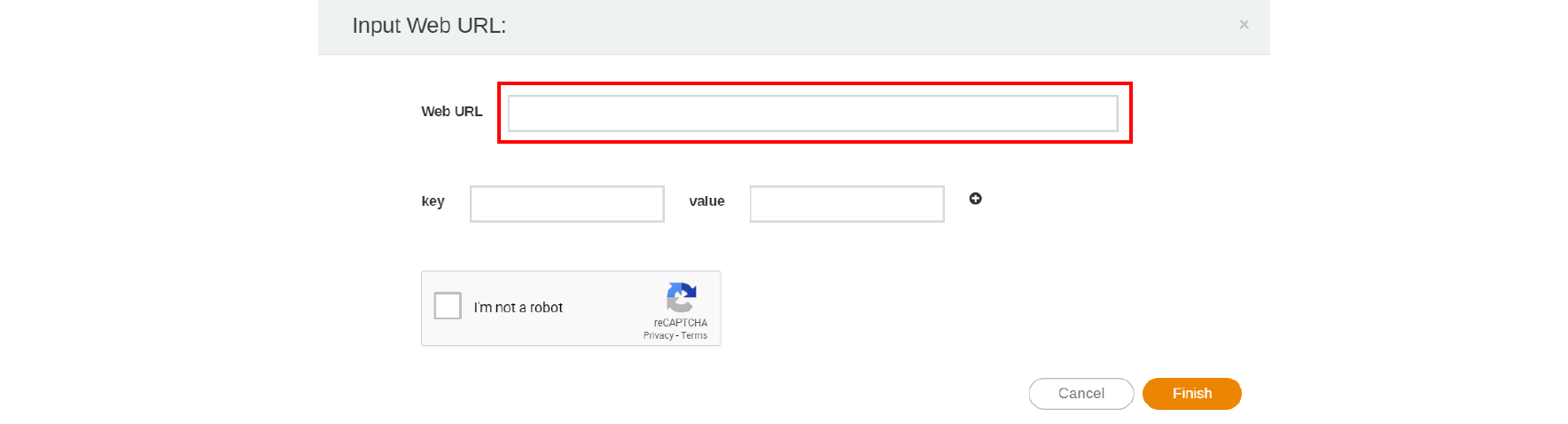

3. Enter the settings of the configuration.

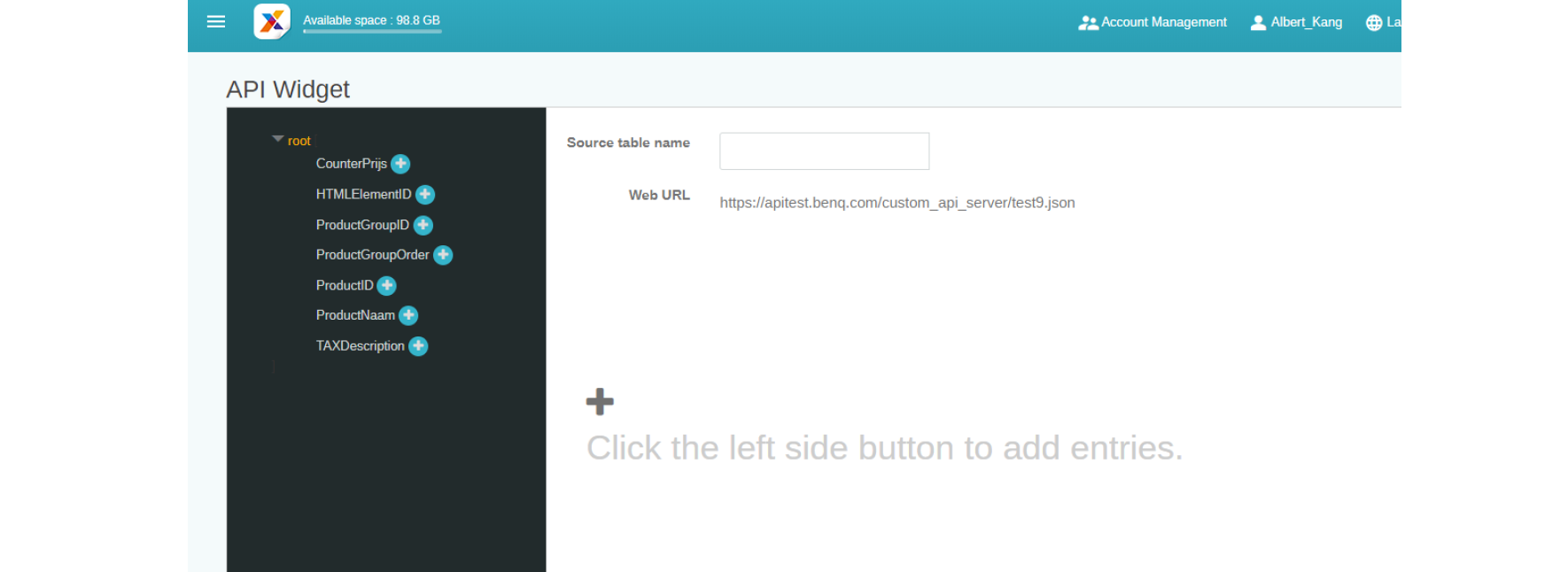

4. Create a source table for API.

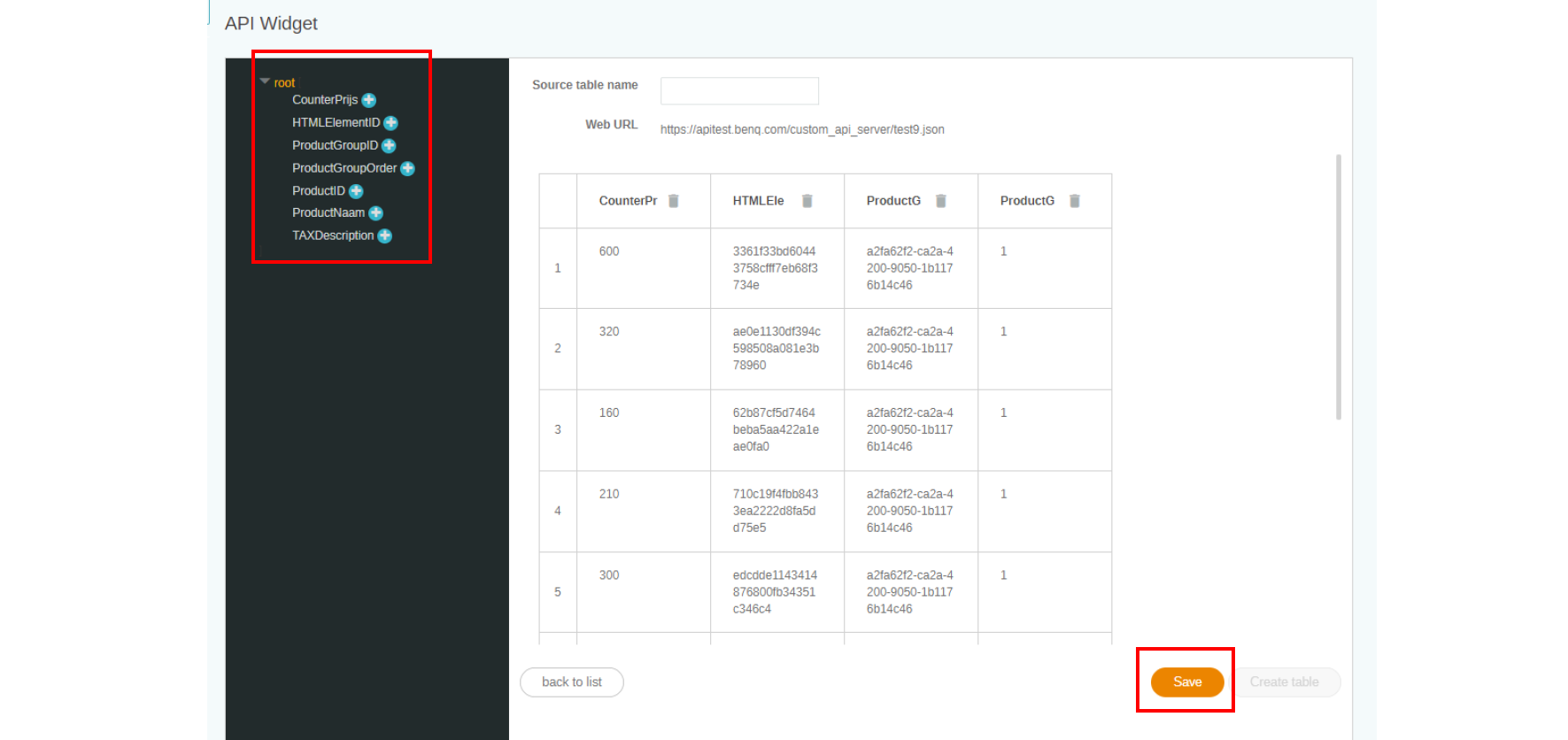

5. Select the tags from Json to the source table. Click Save to continue the creating process.

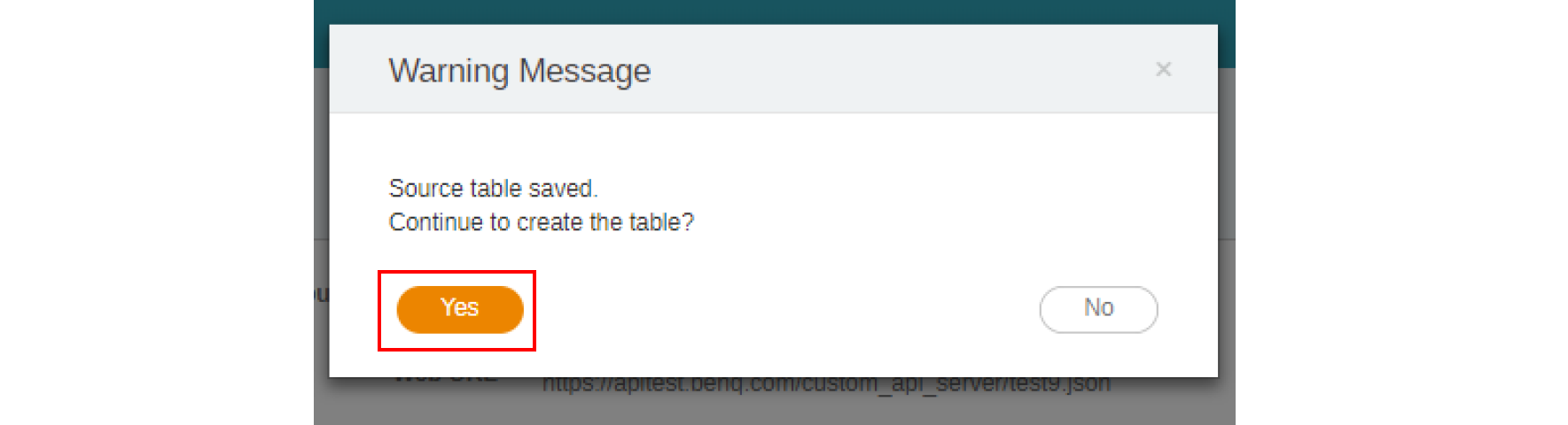

6. A warning message will pop up. Click Yes to continue.

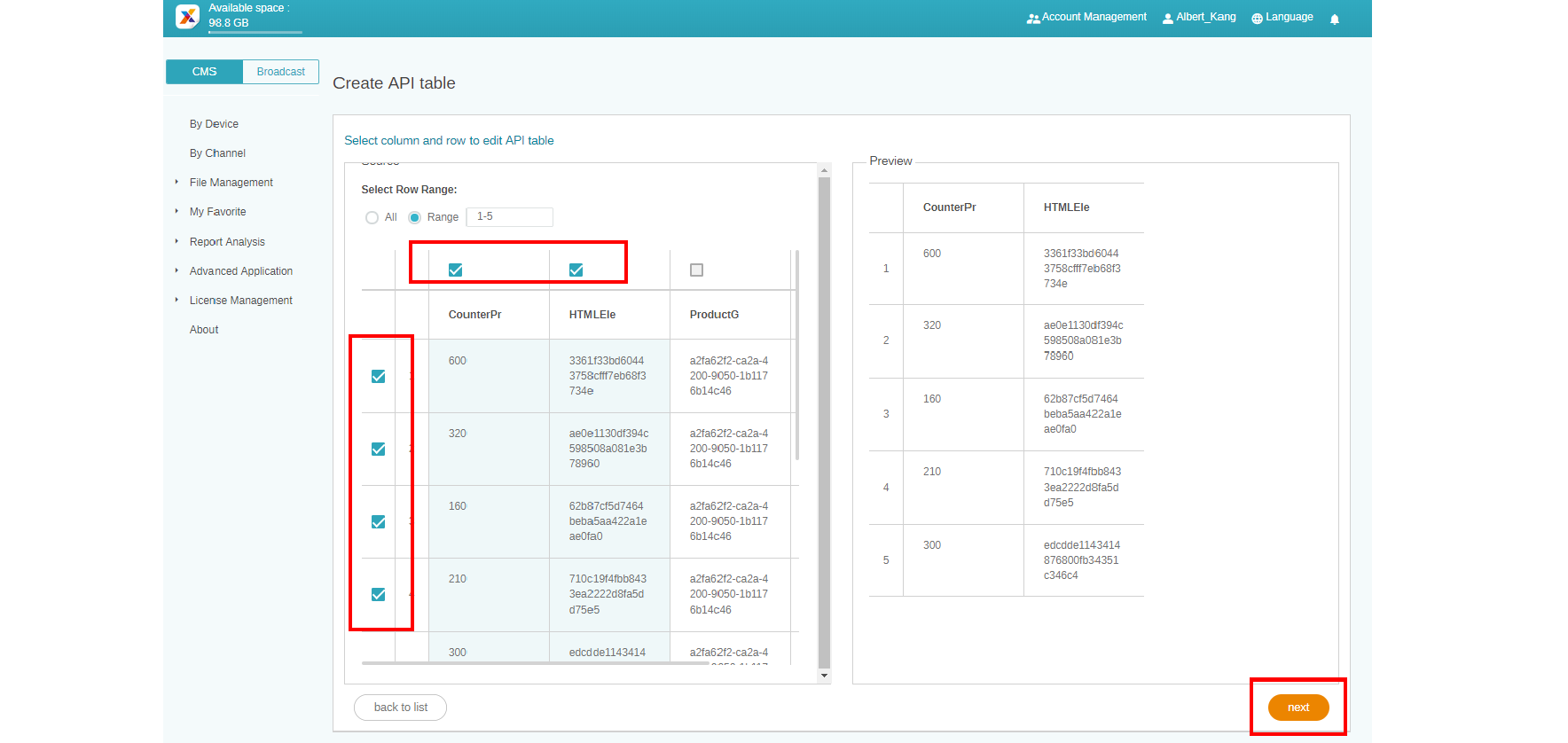

7. You can preview the selected range of the table. Click next to continue.

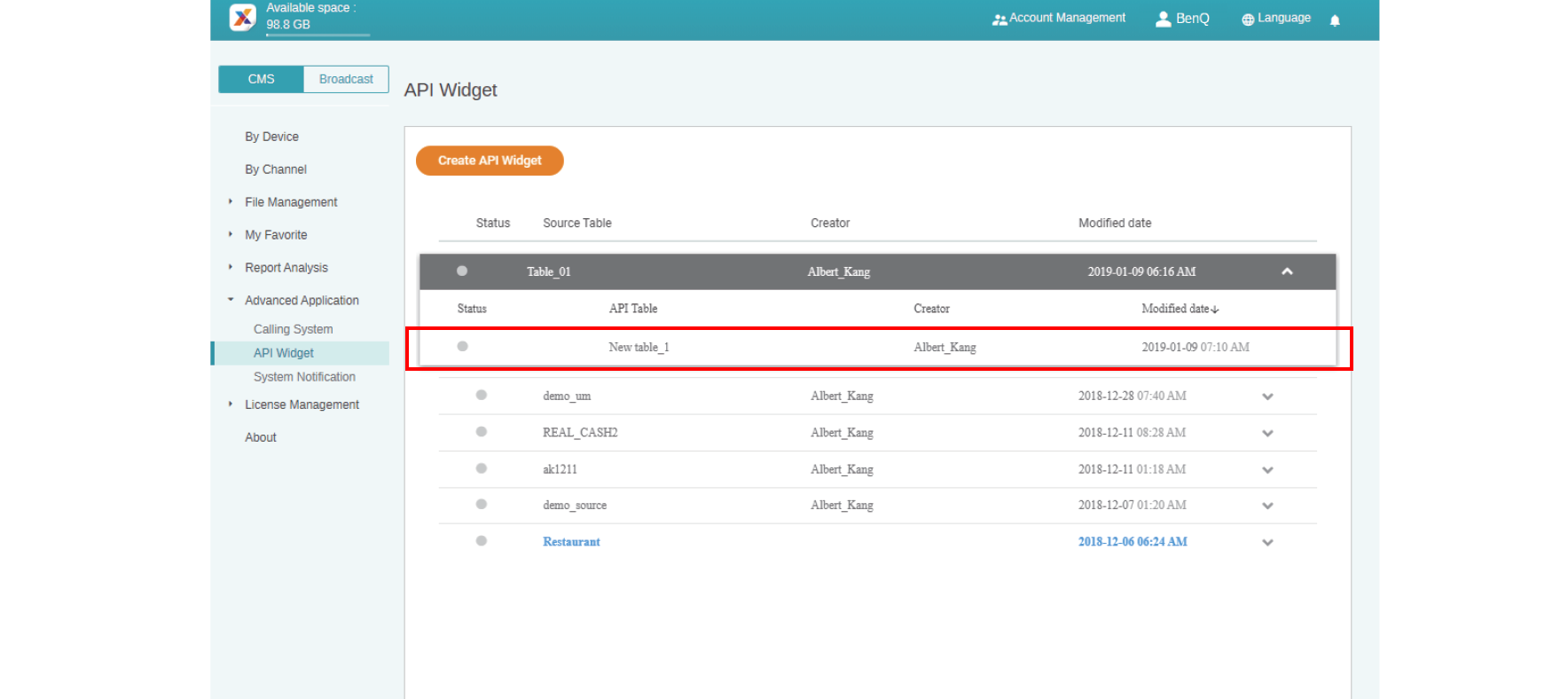

8. The source table is successfully created.
