X-Sign OpenAPI
X-sign 2.0 / X-Sign OpenAPI
Authentication
2021 / 04 / 09
Overview of Authentication
When calling all X-Sign OpenAPI items, access_token must be included in the header. If this is not included, a "401 Unauthorized" error will be returned.
An obtained token expires and becomes unavailable for use after ONE MONTH. If this is the case, you should obtain a new token.
The process is as follow:
1. call the API to get access_token
2. redirect to auth server (login page)
3. end-user login (admin account only)
4. redirect to request.redirect_uri with access_token
access_token can be obtained by calling the following api.

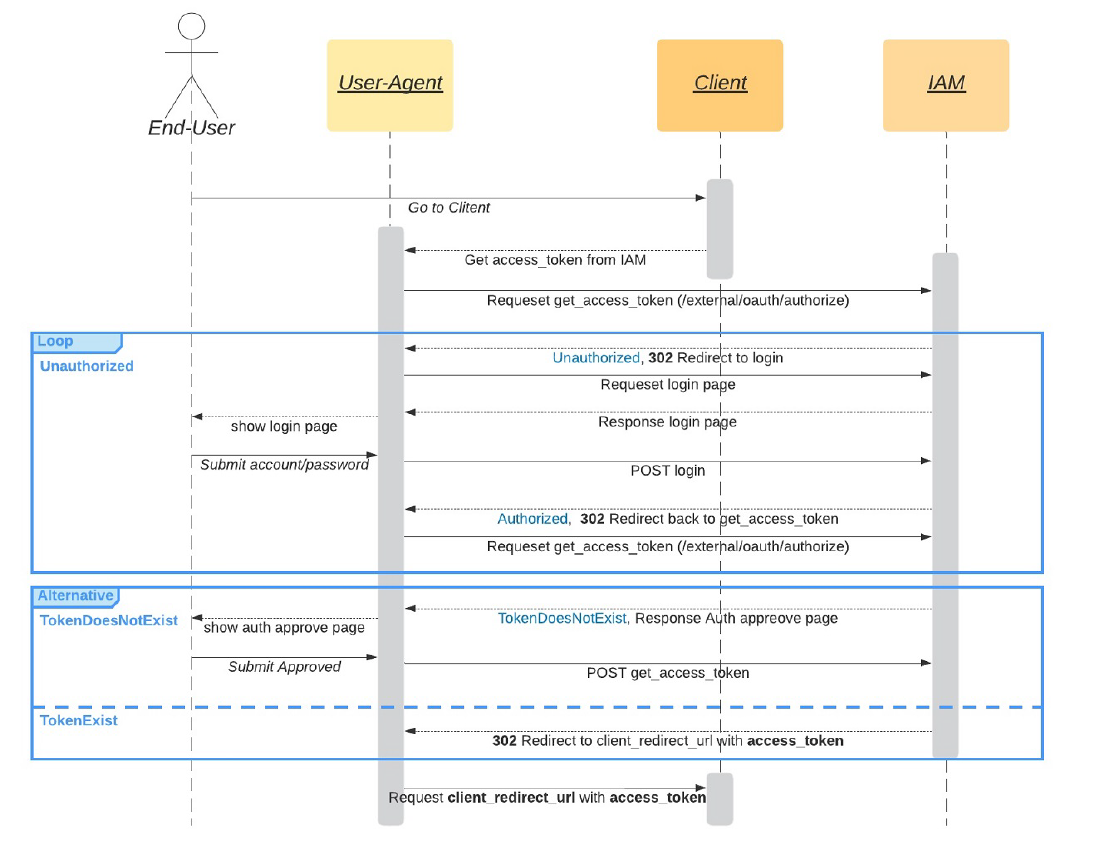

Auth flow
The authorization is similar to the OAuth 2.0 authorization code flow, with one important distinctions :
The response_type parameter must include external_token.
Auth URL
https://service-portal.benq.com/external/{version}/{path}
Version
v1
Auth API
GET /oauth/authorize
Request Parameter
| Name | Schema | Description |
Name client_id | Schema Required. Type: integer | Description client_id |
Name redirect_uri | Schema Required. Type: string | Description redirect_uri (Must be the same as the registered value) |
Name response_type | Schema Required. Type: string Value:external_token | Description response_type |
Name scope | Schema Optional. Type: string Value:xsign | Description scope |
Name state | Schema Optional. Type: string | Description request state |
curl -X GET "/external/v1/oauth/authorize"
-d '{
"client_id":3,
"redirect_uri":"http://example.com/callback",
"response_type":"external_token",
"scope":"xsign"
}'
Response Code
General HTTP Staus Code
| Code | Description |
Code 302 | Description Found, Redirect |
Final Response Header (redirect_uri)
URL redirect to request.redirect_uri
| Key | Schema | Description |
Key *Location | Schema string | Description request.redirect_uri with parameters |
Final.Response.Header.Location.parameters (auth SUCCESS)
| Key | Schema | Description |
Key *access_token | Schema string | Description access_token |
Key *token_type | Schema string Value:bearer | Description token type |
Key *expires_in | Schema integer | Description expired (second) one month |
Key *state | Schema string | Description request state |
Final.Response.Header.Location.parameters (auth ERROR)
| Key | Schema | Description |
Key *error | Schema string Value:access_denied|invalid_scope | Description token type |
Key *state | Schema string | Description request state |
Location: http://clientapi.com.tw#access_token=eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsImp0aSI6IjM5NmI2ZTQ0OTFjNDU0YTBhYzBjMzM1MDAyYTUzOTFkNDRhMWM1YzkwYTkxYzdiZmEyMTJlYTIxZjc5M2ZkOGY5ZGRiMmJiYWRmMDdhODYxIn0.eyJhdWQiOiIzIiwianRpIjoiMzk2YjZlNDQ5MWM0NTRhMGFjMGMzMzUwMDJhNTM5MWQ0NGExYzVjOTBhOTFjN2JmYTIxMmVhMjFmNzkzZmQ4ZjlkZGIyYmJhZGYwN2E4NjEiLCJpYXQiOjE1Nzc0MTY1NDMsIm5iZiI6MTU3NzQxNjU0MywiZXhwIjoxNTc3NDIzNzQzLCJzdWIiOiIxMDAxIiwic2NvcGVzIjpbXX0.txBx2sOPrnJomcrx27ibgPPOIm21VcjcAxb3upNMZYiXzyo59y9gTVrGw_u442w0pyaRsXDVlhmS6K9RCfykswd4cAlSdfR9gFQRhEqNwSak8XkZBjVxT7818m8Z9R_jcAVvvlMC3Gz0fhLCKmuNhQSs4On8NQBW4KSewSYYoL25h_Gtl5C7G4XneLoCqIqLY3JyXcr8-LTzbn-GWrwGNsPeRoQQyVki4Uc89RoYhnp4-n8GQFMJuaOettaKNyu5qpP04-q6xMPYvMM5PBtTgj-4dYsxIBe51HbnpMYglgccOTt3iTx0EOsCefKY54tyKT38z8bCV9YeQ9Pwe_QXPocaEgWSAkYpBCzt6ZdoUWX3GDuXQxzyO_OCioQU_ipB3FWSrfdWjfJi4b2YelUs5oC_AUNPdam2tY8bg68x4oGWCXiCi_s7bPegUuyGSf3CUjmR2HZc5rbWYS1JNct7Xp4-k4poxwlhOF3EDy5jWmSDVykrigjkWjwFT2bDLk4rtN2l4W_OliVbyiAmp78fwwEKjh1vSrW9UpfMWoMrHX4eEa1Ca96WNr4oJOeugxCPPzBzJZF5TBxPhPcn3wd0fL7iPNUS1lr3byJsHMpMADDdNvEacS8e-k9Y7Rt5q-xl7-OoymH9IPaPRY3KL7FhhcG3zFnRt4rGLD7xgM&token_type=bearer&expires_in=7200
