How to Intensify Your 4K HDR Viewing Experience with Dynamic Iris?

When you think of cinematic visuals, color is often the first thing that comes to mind. But aside from color, the application of light and its effect on the image is equally important to the visual narrative. The contrast between light and dark can be used to enhance the realism of the overall image as well as intensify the feelings of awe and wonder. In addition to focusing the audience’s attention, the interplay between light and dark can take a two-dimensional image and give it a three-dimensional feel, giving the scene increased depth and infusing rendered surfaces with greater texture, all working together to strengthen the emotional power of cinema.

For projectors with HDR, the question is how to boost dynamic contrast to make the blacks become deeper and more detailed and the whites fuller and more authentic? One of the answers is to use a dynamic iris.

Dynamic iris is a mechanism in projectors integrated between the projector lamp and lens that opens or closes depending on the overall brightness of the projected image to adjust the projected light. For bright images the iris opens wider to allow more light, while for dark images the iris closes to reduce the amount of light projected.

A dynamic iris is used to fine-tune the projected image by enabling the projector to enhance its on/off contrast: in other words, the difference between the brightest white when the iris is fully open and the darkest black when the iris is closed. This ensures that dark scenes are appropriately dark, while bright scenes are as bright as they can be.

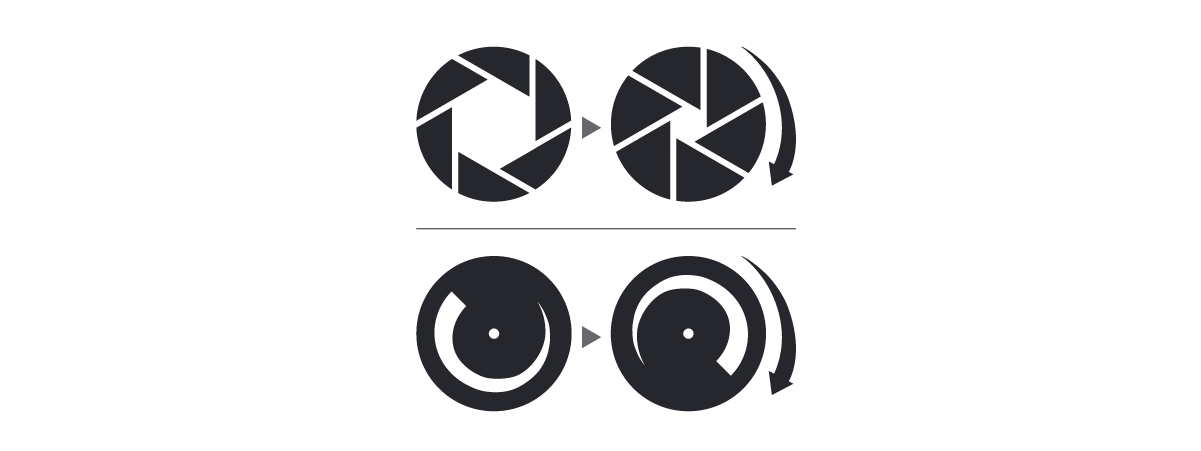

The engineering behind dynamic irises varies across a wide range of designs to achieve the contrast-boosting effect, from different brands and even among models from the same brand. For example, some projectors use an apparatus similar to a leaf shutter on a camera, with blades moving to increase or decrease the size of the iris based on the needs of the image. Other projectors employ a wheel-like instrument with a gradually shrinking aperture, which rotates to change the size of the opening to achieve the contrast-boosting effect.

To further refine dynamic iris technology, BenQ developed the Dual Dynamic Iris solution, employing two separate irises that work in tandem to further fine-tune the amount of projected light for maximum on/off contrast. Dual Dynamic Iris projectors add a step-aperture iris to the original dynamic iris, close to the lens, which resizes itself depending on the brightness of the image to give additional control over projected light and ensure that only the ideal amount of light is projected for a given image.

Complementing these mechanics is Texas Instruments’ DynamicBlackTM, which allows the projector to evaluate the source image’s brightness level with greater sensitivity and determine more precisely how and when to deploy the projector’s irises in order to optimize light output and contrast.
