Temperature Screening Solution: Efficiently Screening Crowds


Moving business forward, safely
  • Process crowds efficiently through doorways
  • Rapid, hands-free screening
  • Instant image retrieval & ensure privacy
  • X-Sign message promotion & instant delivery
  • Remote device management
Special Promotion
    Temperature Screening Solution: Efficiently Screening Crowds Moving business forward, safely
    • Process crowds efficiently through doorways
    • Rapid, hands-free screening
    • Instant image retrieval & ensure privacy
    Special Promotion
      A New Way Forward

      As the world gets used to coexisting with COVID-19, people are hoping that recent inconveniences are gradually removed so that life can go back to normal. This disease has been a reminder to people of the need to protect themselves. The BenQ Temperature Screening Solution is the ideal choice for corporate and retail bringing back normalcy. This contactless temperature screening system ensures that offices, shopping malls, and businesses can function while still protecting the health of employees and customers.

      Why a Temperature Screening Solution?

      A temperature screening solution is an effective way of screening the potentially ill, safeguarding indoor locations for employees and customers alike. It is a more comprehensive solution than competing options, as it highlights efficiency, safety, and tracing capability.

      Efficiency

      A reliable temperature screening solution can process crowds quickly, making it ideal for rapid screening at doorways. This eliminates the expense of having personnel take temperatures manually and the customer inconvenience of long lines.

      Customers line up for a temperature check

      Customers line up for a temperature check

      Safety

      Scanning at a distance reduces the health risks to monitoring personnel, and doing so at speed reduces risk of transmission between passersby, which makes it a superior solution to competing options like handheld thermographic cameras.

      Taking temperatures by hand increases the risk of infection.

      Taking temperatures by hand increases the risk of infection.

      Tracing

      Data collected by the system can be stored and used to cross-check possible infected persons. This ensures that cases are not misdiagnosed or missed. An automated email is sent to supervising personnel if an anomaly like a high temperature is noted.

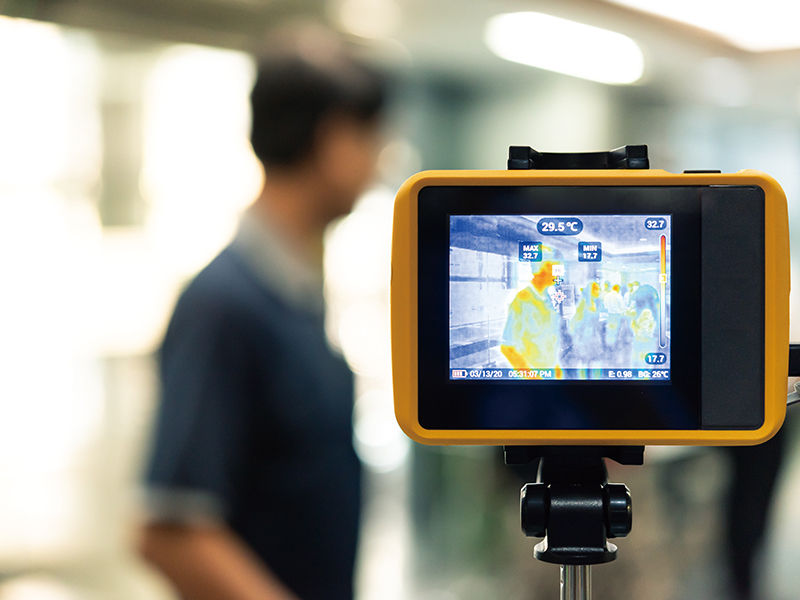

      When tracing is impossible, an opportunity to halt the spread of disease is lost.

      When tracing is impossible, an opportunity to halt the spread of disease is lost.

      Why BenQ Temperature Screening Solution?

      BenQ is a leader in product design for visual displays and network convergence technologies with the hope to delight the world. The firm is well-placed to provide state-of-the-art screening solutions.

      Intelligent scanning & instant retrieval

      Images are instantly transferred to the user’s display for remote monitoring, while multiple test points allow for highly efficient rapid scans. Customizable temperature settings based on conditions on the ground limit errors, while privacy can be protected through the inclusion of both thermal and optical cameras. Where a high temperature is noted, an alarm will go off and related data can be saved and emailed to allow for tracing.

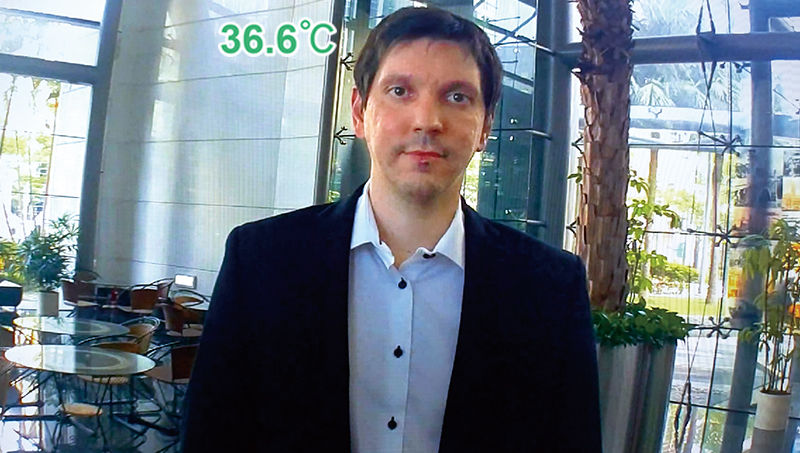

      The optical camera preserves privacy.

      The optical camera preserves privacy.

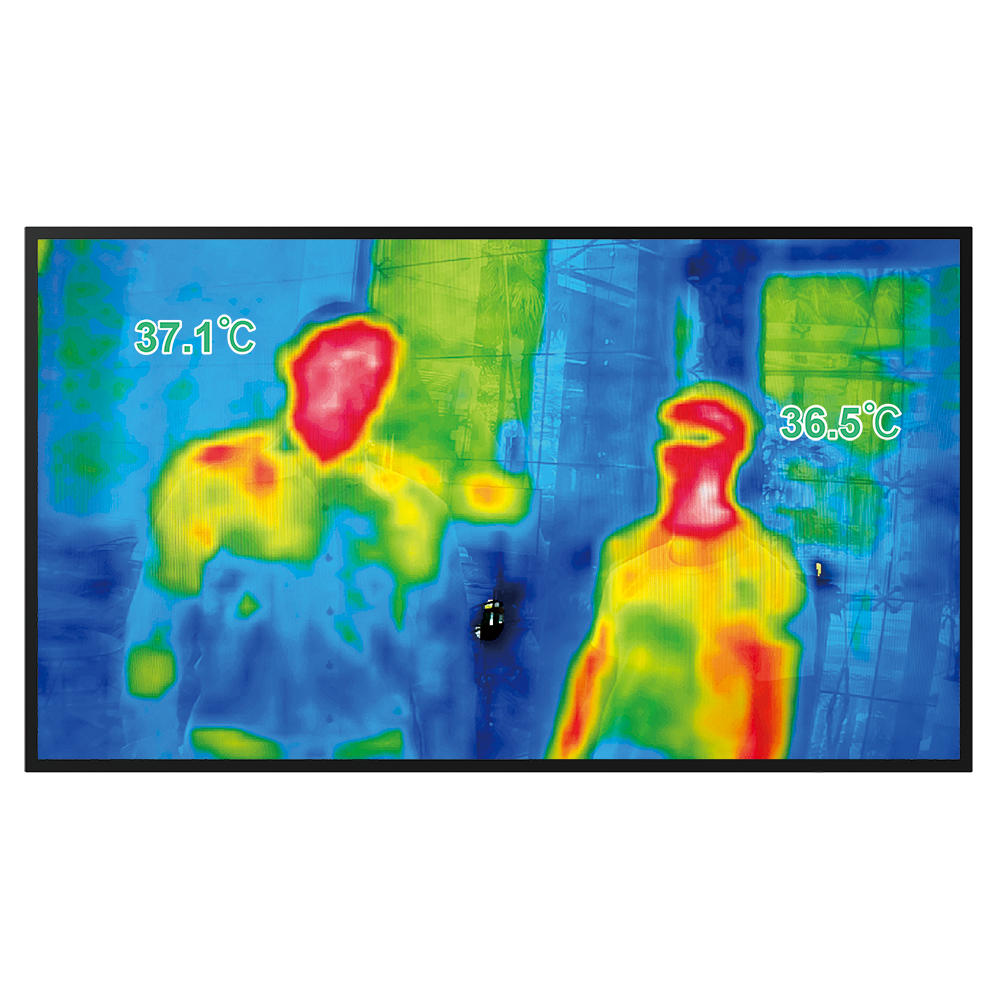

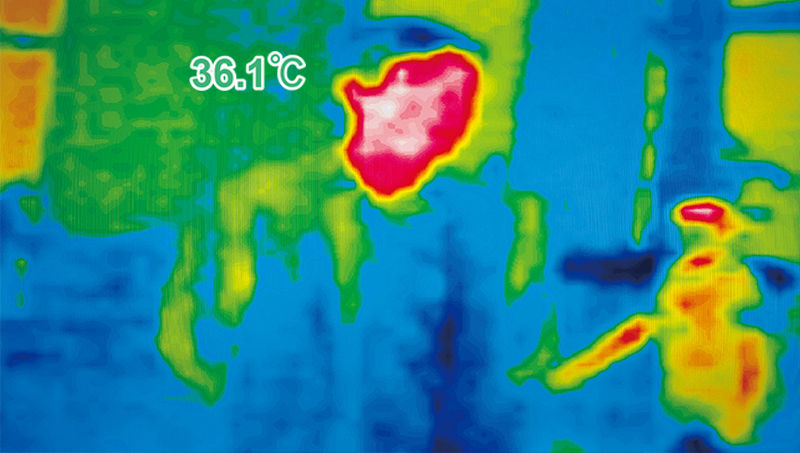

      The thermal camera shows points of higher temperature.

      The thermal camera shows points of higher temperature.

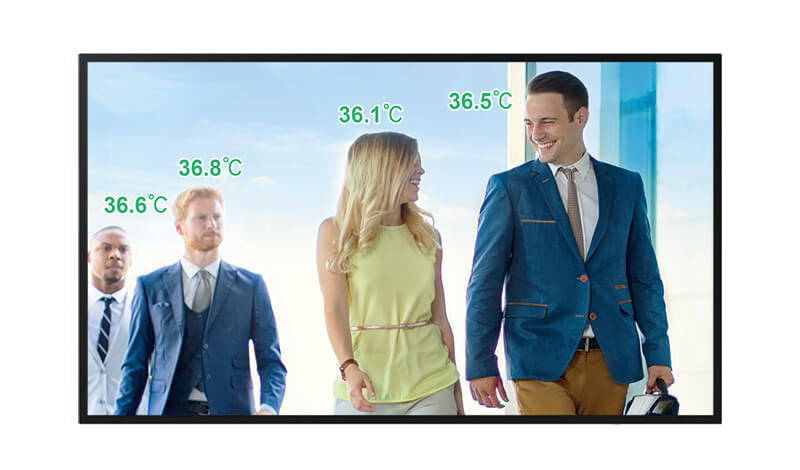

      Proven track record of professional service

      BenQ is known across the industry for providing on-point technical solutions to modern-day problems. The ST02 4K Smart Signage series, an all-in-one Android solution, is packed with the latest technology, including 4K resolution at 450 nits brightness. Built to run 18 hours a day, seven days a week, this workhorse can be set to view in landscape or portrait style (available in either 43/55”), allowing for greater flexibility in installation, and can support up to nine cameras.

      Taking temperatures by hand increases the risk of infection.
      Hands-free thermal sensing and noticeboard
      Taking temperatures by hand increases the risk of infection.

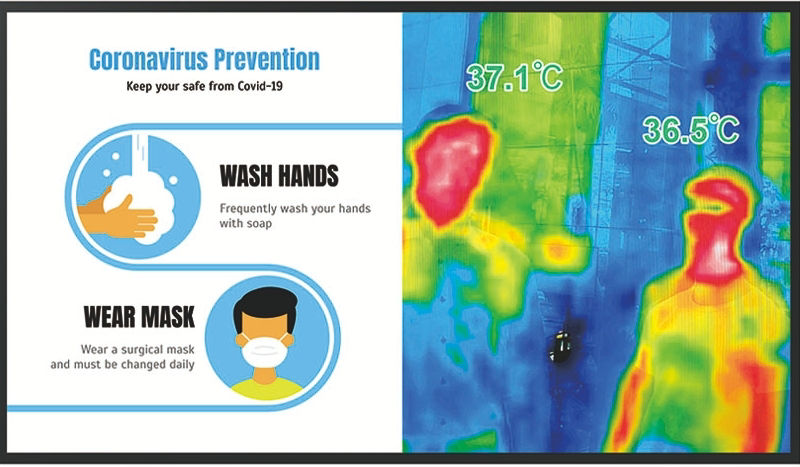

      The X-Sign’s templates help admins design messages quickly. One half of the screen displays a message, the other half a live image from the thermal camera in either landscape or portrait view.

      Taking temperatures by hand increases the risk of infection.
      Program and Insert Push Messages
      Taking temperatures by hand increases the risk of infection.
      Taking temperatures by hand increases the risk of infection.

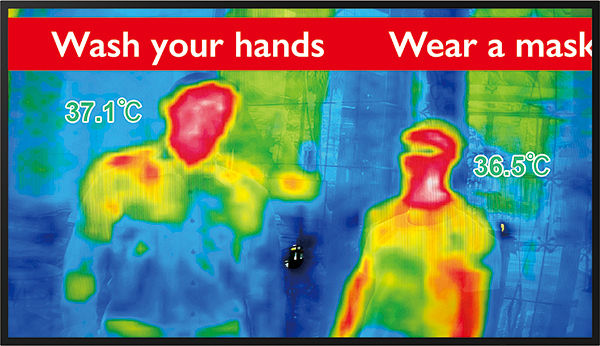

      The system allows for customizable X-Sign Broadcast, such as alerts and evacuation calls, as both scheduled or interrupt text or image messages. These messages can be programmed via both devices and PCs.

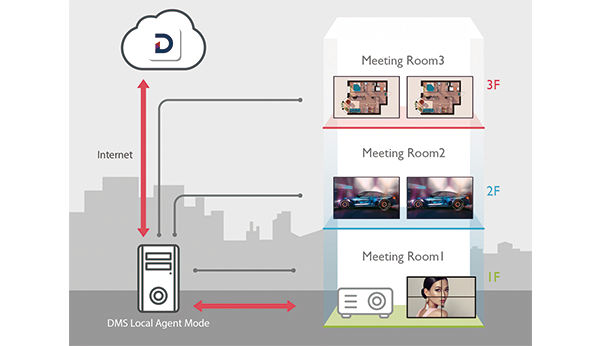

      Convenient Remote Device Management
      Taking temperatures by hand increases the risk of infection.
      Taking temperatures by hand increases the risk of infection.

      Displays can be remotely monitored and managed through the Device Management Solution (DMS). Accessing the DMS Cloud, users can install and execute Android apps on displays remotely. Such convenient solutions reduce energy and personnel costs by being intuitive and on-the-go!

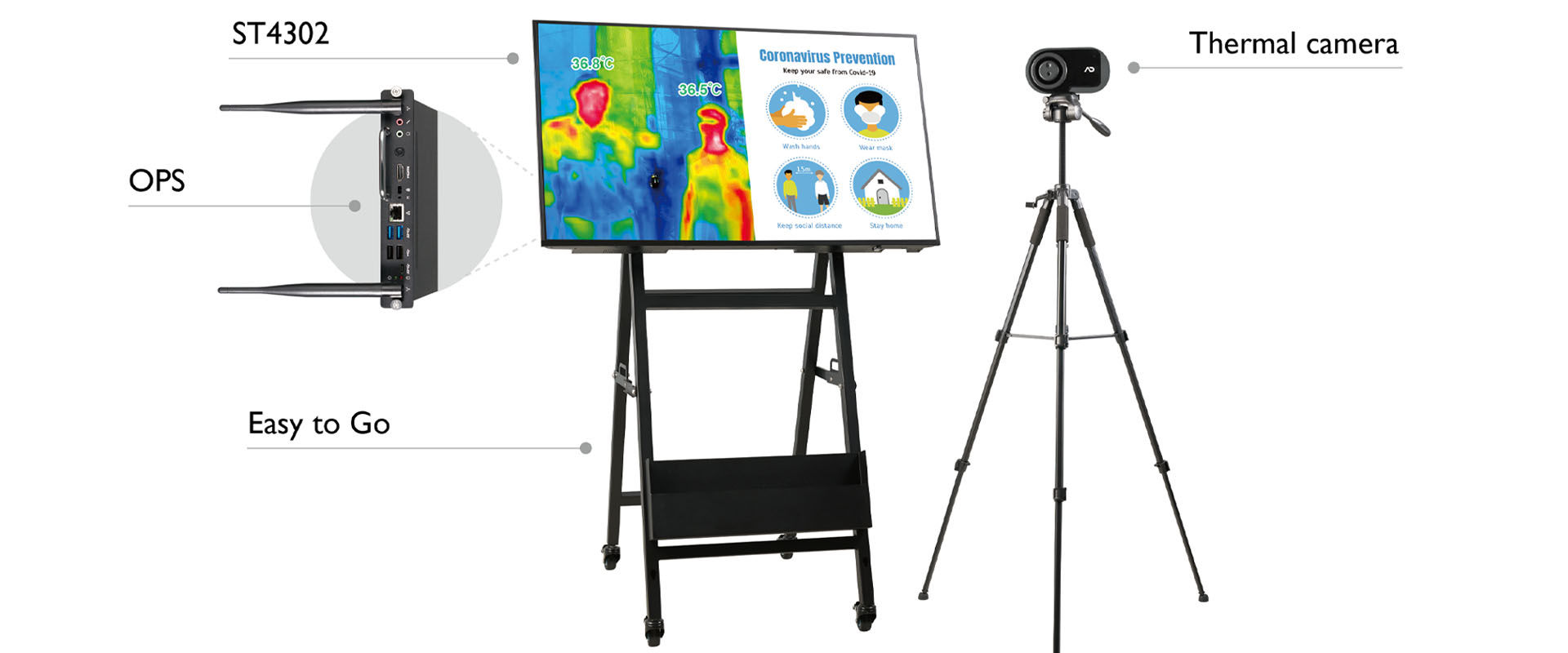

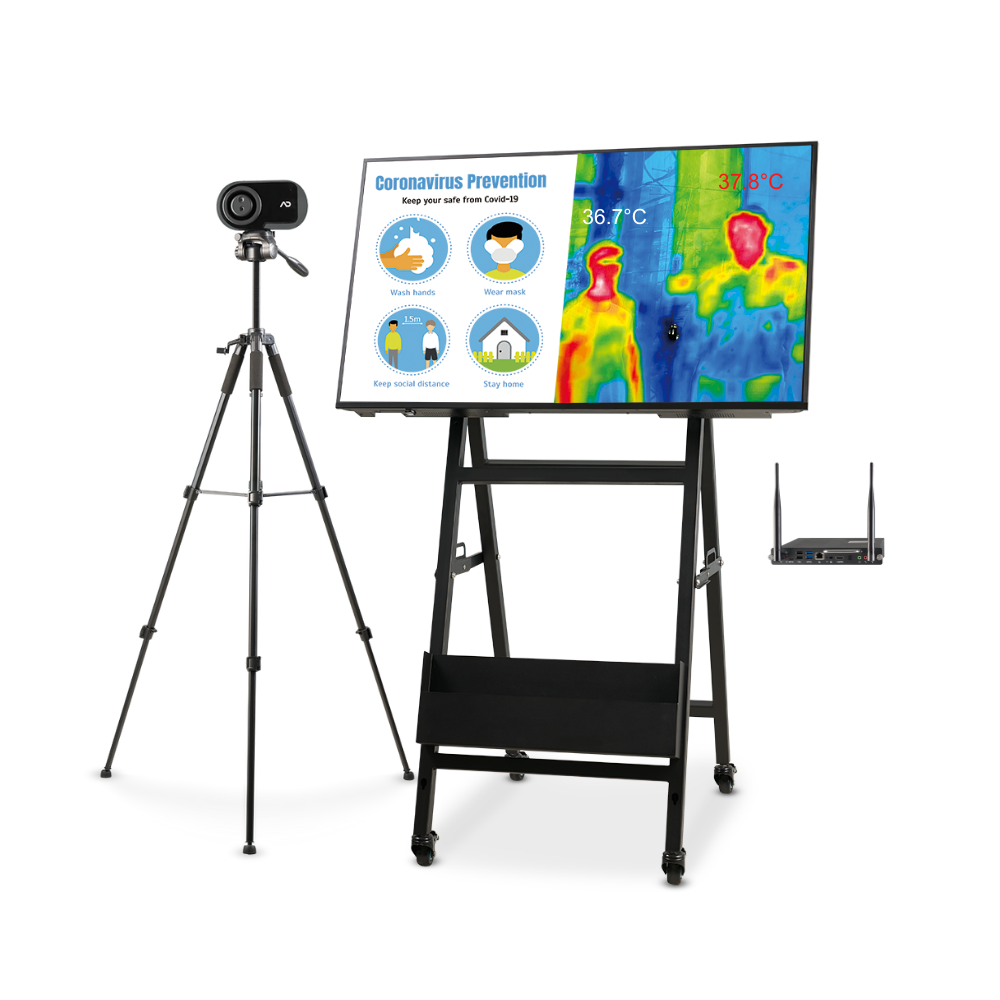

      BenQ’s Temperature Screening Solution
      Specifications of Temperature Screening Solution

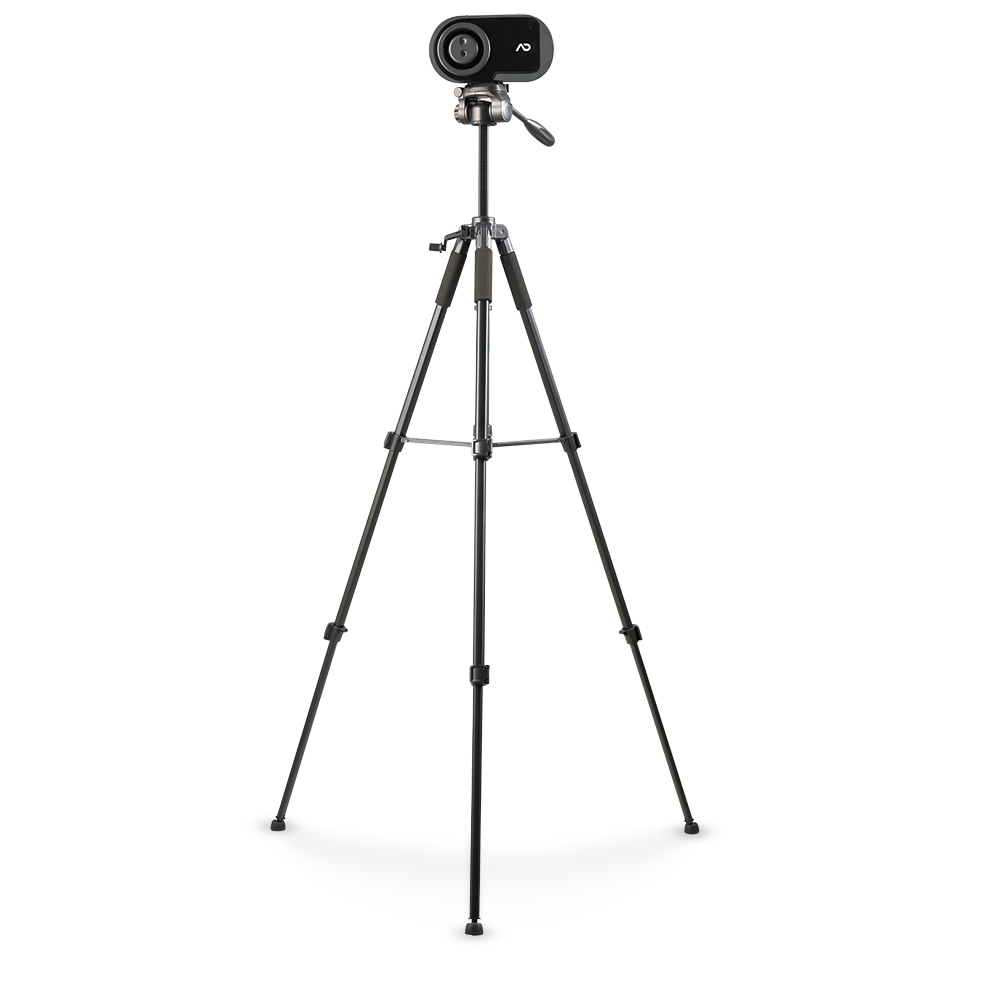

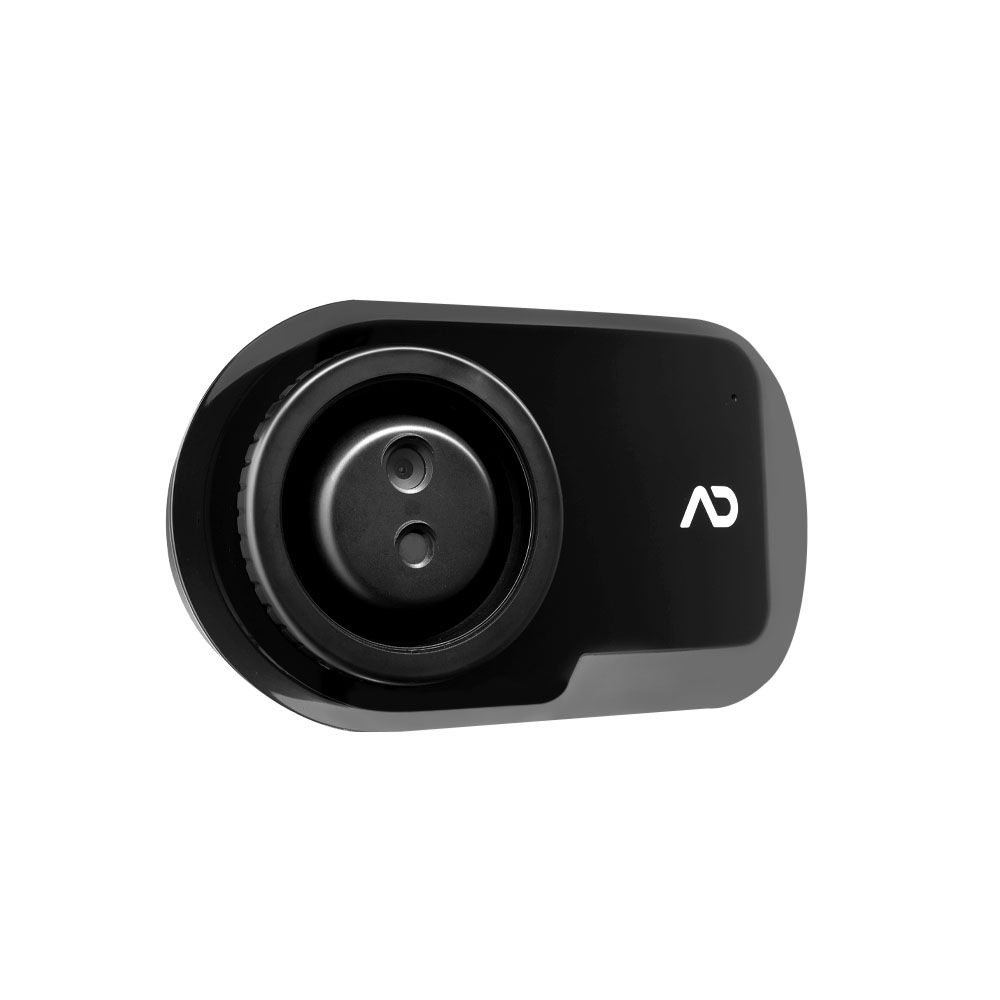

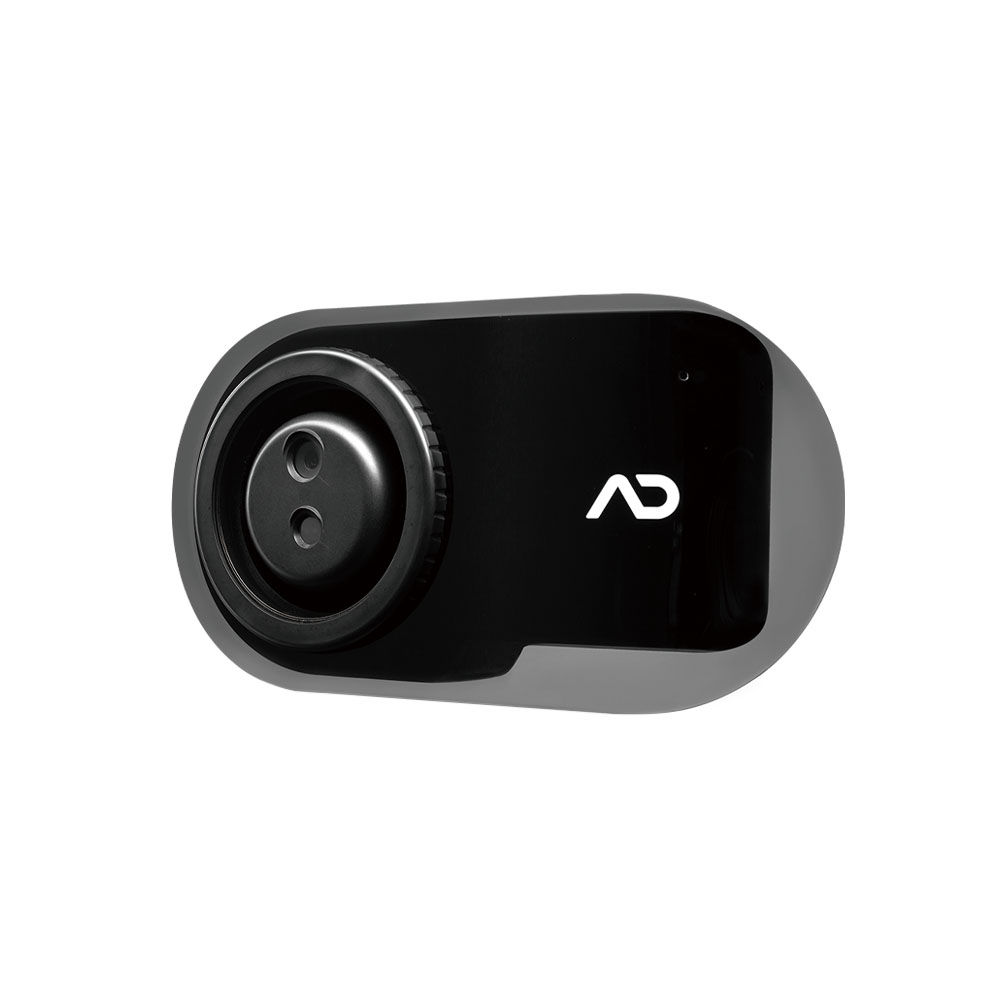

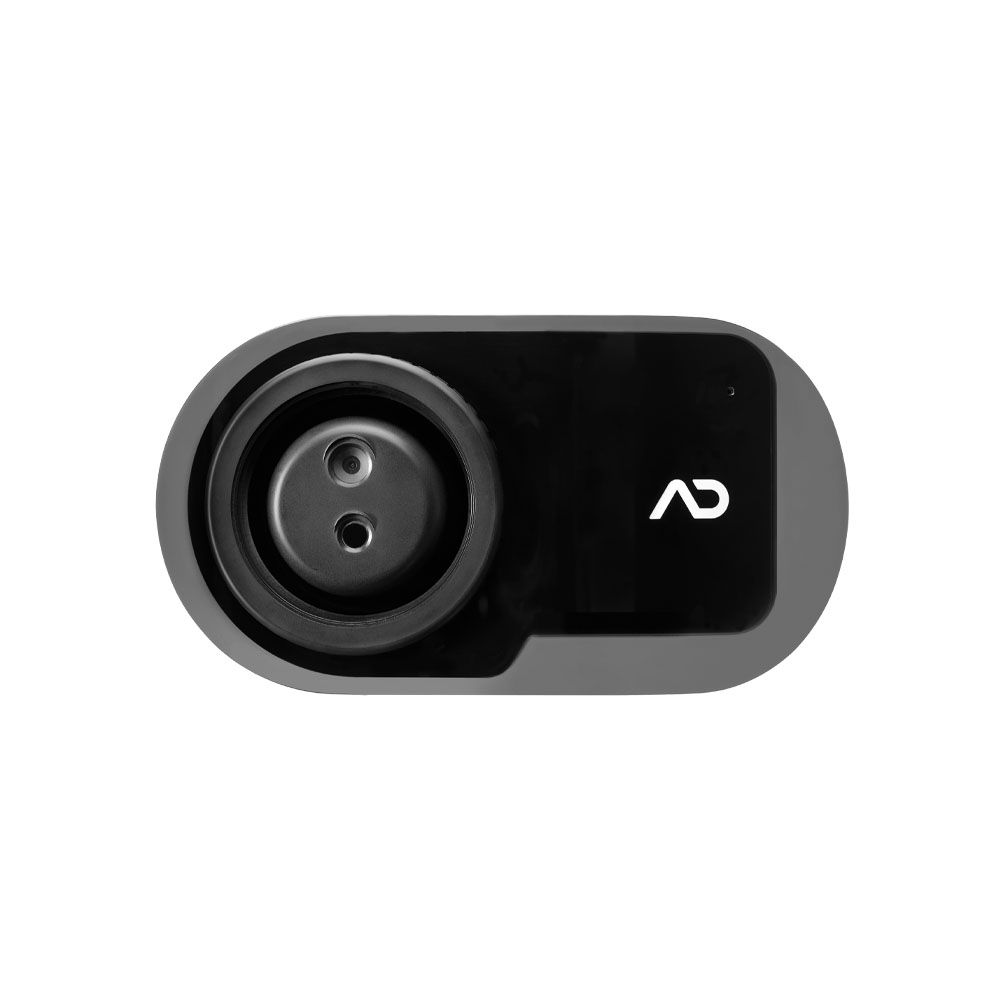

      Thermal Screening Camera

      DVY24



      DVY24

      Full color video camera





      DVY24

      Resolution

      2MP(1920x1080 pixels) 16:9

      DVY24

      Field of View


      65°(hor.)x40°(ver.)

      DVY24

      Frame rate

      Max.30fps

      DVY24

      Video Stream



      DVY24

      Format

      H.264(video camera) / Proprietary(thermal imager)

      DVY24

      Bitrate


      Max. 4Mbps

      DVY24

      Users


      Concurrent 4 clients

      DVY24

      Thermal imager



      DVY24

      Resolution



      80 x 60 pixels

      DVY24

      Field of view

      51°(hor.)x38.25°(ver.)

      DVY24

      Frame rate

      Max. 7fps

      DVY24

      Sensitivity

      0.1°C / 100mk(NETD)

      DVY24

      Sensing range


      20~100°C

      DVY24

      Accuracy


      ± 0.5°C (Use black body in 1meter )

      DVY24

      System



      DVY24

      Network

      Support RJ45 ethernet connection

      DVY24

      I/O


      Reset button x1 (Return to factory default)

      LED indicator (blue) x1 (Normal operation)

      LED indicator (yellow) x1 (Network packet act)

      DVY24

      Power input

      5Vdc/2.5A (Micro-USB connector)

      DVY24

      Operating temp.

      0~40°C , ≦95%RH

      DVY24

      Storage temp.

      -10~60°C , ≦95%RH

      DVY24

      Dimensions

      101.3mm(H)x65.5mm(W)x43.8mm(D)

      4K Smart Signage

      Model ST4302 ST5502 ST6502 ST7502 ST8602
      Model
      Screen Size
      ST4302
      43"
      ST5502
      55"
      ST6502
      65"
      ST7502
      75"
      ST8602
      86"
      Model
      Resolution
      ST4302
      3840 × 2160 pixels
      ST5502
      3840 × 2160 pixels
      ST6502
      3840 × 2160 pixels
      ST7502
      3840 × 2160 pixels
      ST8602
      3840 × 2160 pixels
      Model
      Brightness (typ.)
      ST4302
      450 nits
      ST5502
      450 nits
      ST6502
      450 nits
      ST7502
      450 nits
      ST8602
      450 nits
      Model
      Light life (typ.)
      ST4302
      30000 hrs
      ST5502
      30000 hrs
      ST6502
      30000 hrs
      ST7502
      30000 hrs
      ST8602
      30000 hrs
      Model
      OS
      ST4302
      Android 8.0
      ST5502
      Android 8.0
      ST6502
      Android 8.0
      ST7502
      Android 8.0
      ST8602
      Android 8.0
      Model
      Video input
      ST4302

      • 2 × HDMI (2.0)

      • DisplayPort (1.2)

      • VGA

      ST5502

      • 2 × HDMI (2.0)

      • DisplayPort (1.2)

      • VGA

      ST6502

      • 2 × HDMI (2.0)

      • DisplayPort (1.2)

      • VGA

      ST7502

      • 2 × HDMI (2.0)

      • DisplayPort (1.2)

      • VGA

      ST8602

      • 2 × HDMI (2.0)

      • DisplayPort (1.2)

      • VGA

      Model
      USB
      ST4302

      2 × Type-A (2.0)
      1 x Type-A (3.0) for

      OPS

      ST5502
      2 × Type-A (2.0)
      1 x Type-A (3.0) for OPS
      ST6502
      2 × Type-A (2.0)
      1 x Type-A (3.0) for OPS
      ST7502
      2 × Type-A (2.0)
      1 x Type-A (3.0) for OPS
      ST8602
      2 × Type-A (2.0)
      1 x Type-A (3.0) for OPS
      Model
      RJ45
      ST4302
      1
      ST5502
      1
      ST6502
      1
      ST7502
      1
      ST8602
      1
      Model
      OPS Slot
      ST4302
      1
      ST5502
      1
      ST6502
      1
      ST7502
      1
      ST8602
      1

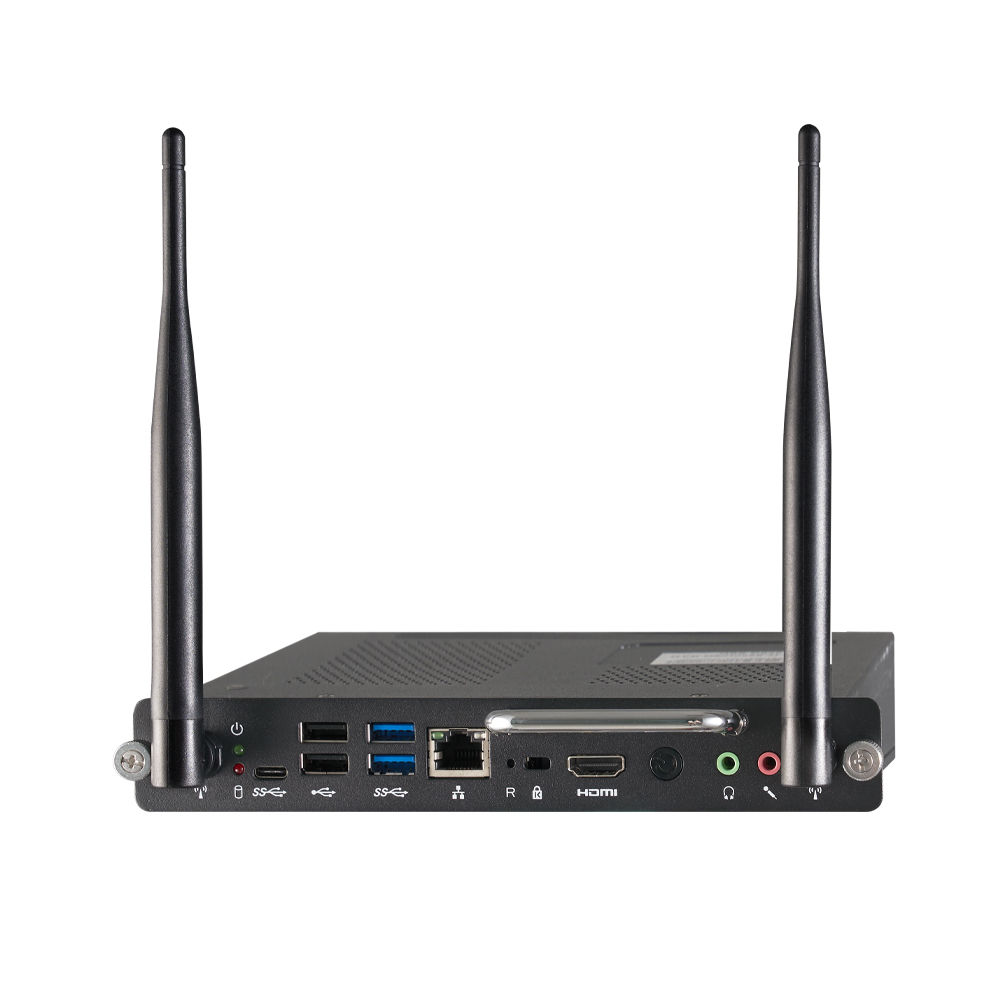

      OPS


      System




      System
      CPU



      Intel® Kaby lake- U i5 7200U , TDP 15W

      System
      RAM



      DDR4 8G (4GB x2)


      System
      HDD/SSD



      1TB HDD

      Easy-to-GO



      Physical





      Physical
      Dimensions (WxHxD) (mm)



      548 x 1203 x 679 mm

      (compatible with 43/55" signage)
